As we launched our first gravel frame- the almighty Wildcard few years ago. We've received tons of feedbacks and thanks from adventurers around the world. We've not only spent lots of hard work upgrading Wildcard's details but also developing a race oriented, premium tubing race bike for growing ultra-race demands.
The result is a thoroughly modern, Multi-Surface, Continent Crushing, Ultra-Endurance race machine, which would keeping you fresh and engaged whilst crossing a country or delivering you swiftly home at the front of the club run.
Our DoubleAce was capable of carrying full set of bikepacking bags. And It'll goes quick off the pavement, or even faster on the road.
DoubleAce - 擁有滿滿競賽 DNA 全地形車款, 採用兼顧輕量與耐用度的航太級管料,並針對踩踏及操控的
我們從來不認為採用鋼管或鈦管只是為了走經典路線,反而
考量到超過一天的冒險旅程,DoubleAce同時針對
Frameset Features
Tubeset: Columbus Life+MAX mixed tubing, ED anti-rust
Headset: WOHO Headset (Included) EC34+EC44

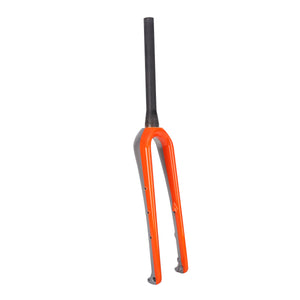

Fork: WOHO Adventure carbon fork (tapered steerer tube 1-1/8” to 1.5”)

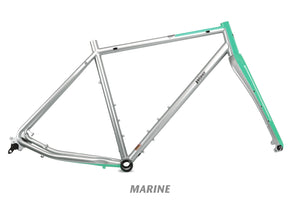

Finish: Metallic silver with orange highlights or custom
Brake Mount: 160mm post mount disc brake
Brake Routing: Internal
Axle Spacing: F12x100TA - R12x142TA or F100QR - R142QR
Bottom Bracket: BB PF30 68mm
Seatpost Diameter: 27.2mm
Seat Post Clamp: 31.8mm (Included)
Front Derailleur Mount: Clamp on
Water Bottle Mount: Total three- Down tube*2 and Seat tube
Tire Clearance: 700c x 40 or 650b x 47
Chainline: Gravel Chainline 1x max 44t (46t with SRAM wide-spec)
Derailleur Hanger: Replaceable rear derailleur hanger
Sizing : 46 | 48 | 51 | 54 | 57 | 60
Lead Time - Made to Order: 4-5 weeks
Starting at $1,599 (Frameset)
Size 48 in-stocks available now
-------------------------------------------------
Tubing

Columbus Life+Max mixed custom selected tubing

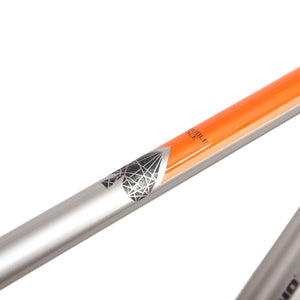

The use of Columbus Life triple-butted top tube & seat tube provides balanced rigidity and lightweight characteristic. The renowned Columbus MAX bi-oval down tube optimizes pedaling efficiency and also keeps long distance ride comfortable.
*採用義大利Columbus Life+MAX管材
上管及立管採用Columbus Life三抽Niobium鋼管,在最輕量的前提下保有
---------------------------------------------------------

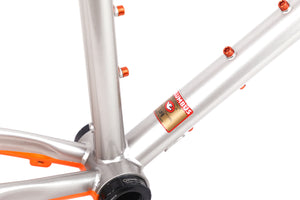

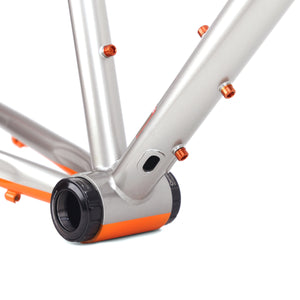

Optional bottom bracket & Tapered head tube


We choose PF30 BB standard for versatile combination of drivetrain, also improves the rigidity of BB area for better power delivering. (You also allowed to choose T47 BB system for your Double Ace)

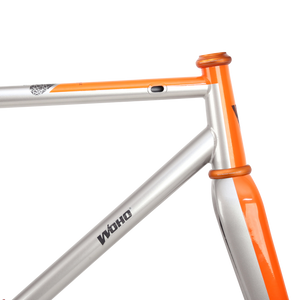

The tapered head tube fits top tube and down tube's diameter better- which results in strong structure in steering area, combine with the tapered fork together makes stable&sharp handling.
加大BB/錐狀頭管
採用PF30 BB標準,能符合各種不同大盤腿組搭配需求。同時強化了
---------------------------------------------------------
Semi-compact front triangle design

Slope and lower top tube especially suits technical trails which also made front triangle lightweight yet rigid.
微壓縮前三角
傾斜上管設計,讓穿越地形需要前後移動重心時不受干擾,
---------------------------------------------------------
Stealth cable routing

Adaptable, internal cable routing system allows you to choose from different combination of drivetrain system. Also keep the cables look clean and ensure them goes the best smooth route.
1x/2x or dropper
Compatible with dropper seat post. Choose from 2x setting or 1x with dropper seat post setting.
內線系統
考慮周到的內走線設計,可搭配各家不同變速設定。除了簡
昇降座管相容
搭配1x單盤設定,可以裝配外走線款式27.2升降座管
---------------------------------------------------------

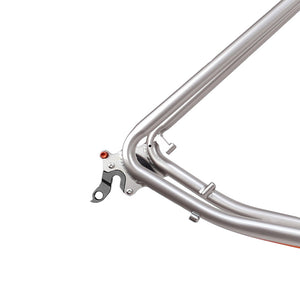

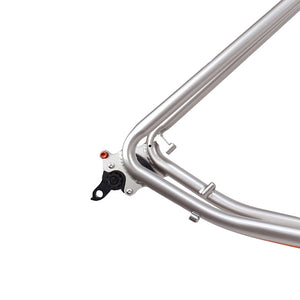

Unibody rear triangle & Interchangable dropout/hanger

The idea was inherited from 80’s classic Yeti mountain bike design, which has great rigidity and able to stand harsh uses. Clears 700c x 40 or 650b x 47 tires.
Double Ace supports two different dropout system- QR (Quick-release) and TA (Thru axle). The hanger was also replaceable in case of any unpredictable happens.
一體式後三角
源自於Yeti登山車的經典設計,耐用又吸震的特性,極
可更換後鉤爪/變速吊耳
*可交換快拆/貫穿軸規格的鉤爪-鋼管車型專屬
變速吊耳亦為可拆換設計,讓全球單車旅人無後顧之憂。
----------------------------------------------------------------------
Size & Geo
